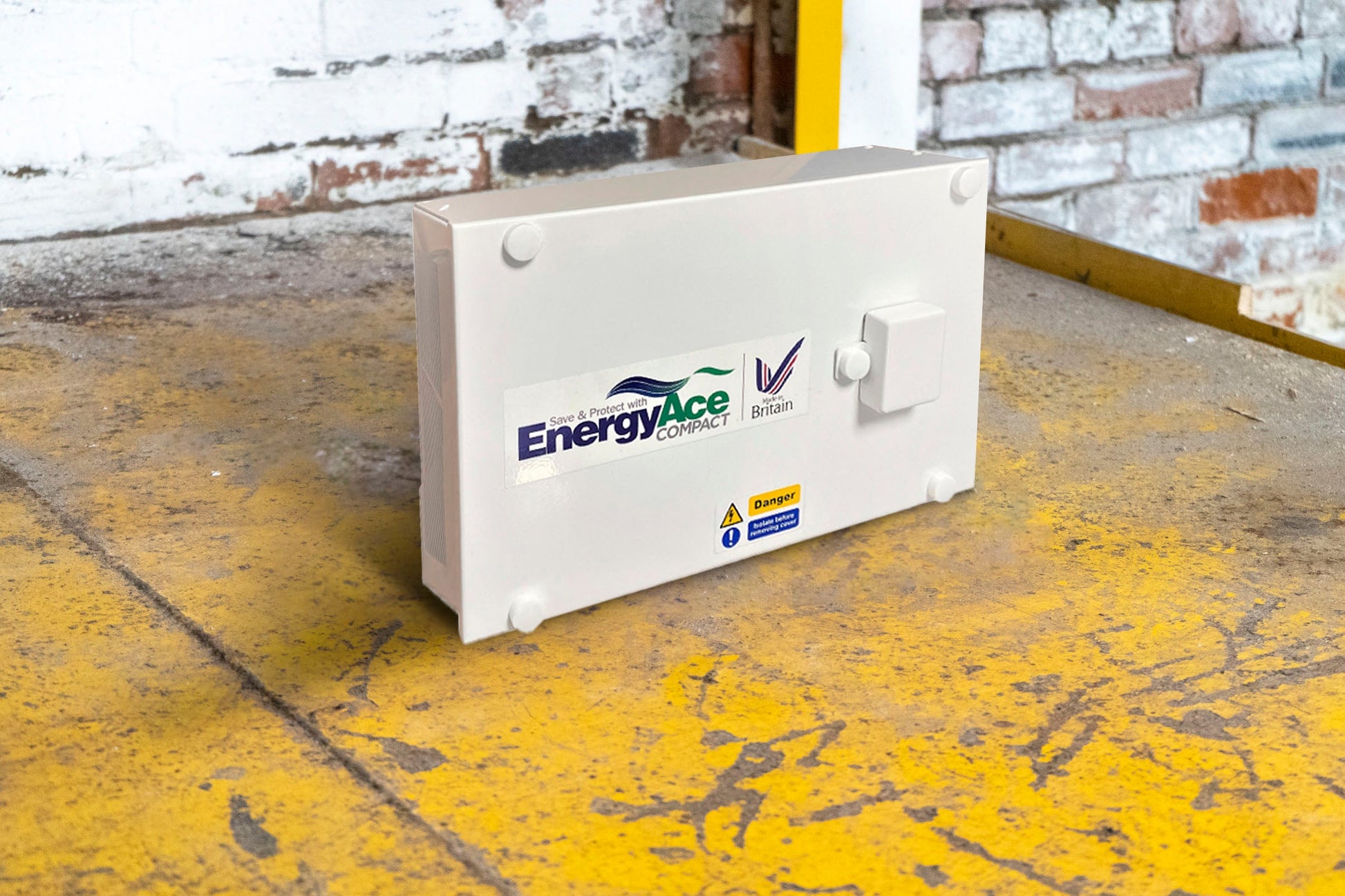

Benefits of the 63A Energy Ace Voltage Optimiser


                      Saves you money!



                  Reduces Electricity bills by Up To 20%


                      Peace of mind, everything optimised



                  Works on all circuits within a building all day every day

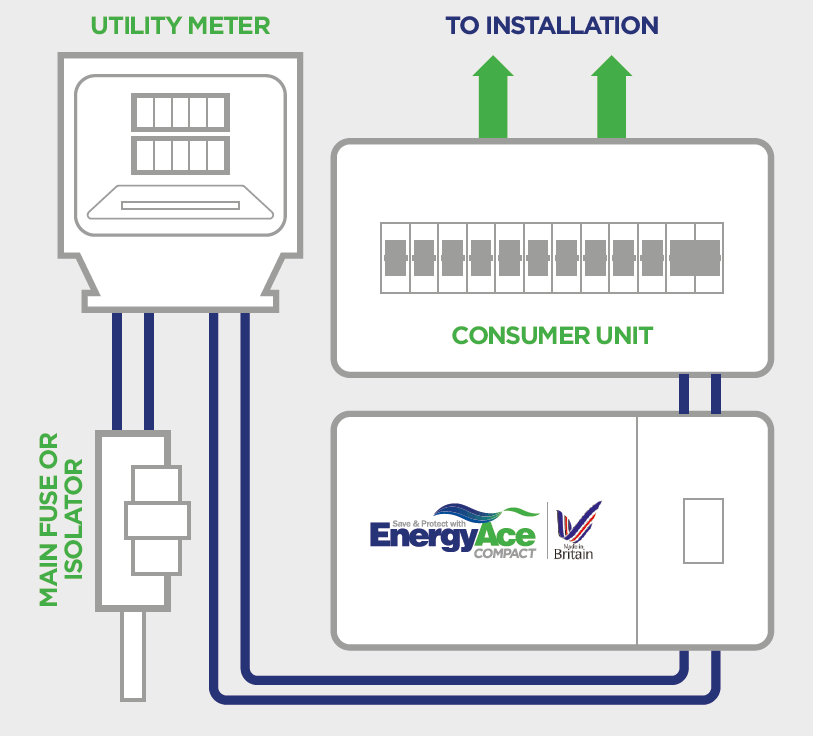

                      Simple installation



                  Usually around 1 hour with no need to change your electricity supplier


                      Increases electrical equipment lifespan



                  Increases the life of all electrical equipment it optimises


                      Solar compatible



                  Can be installed alongside Solar PV and improves efficiency of heat pumps and Solar PV systems


                      No ongoing maintenance



                  No maintenance required, just install and enjoy the benefits


                      Warranty



                  5 year warranty
Who can benefit...
Residential, GP Surgeries, Retail Outlets, Coffee Shops & Cafés, Hair Salons, Gym & Health Clubs, Hotels, Small Industrial Units, Restaurants, Office Facilities, Laundrettes, Garden Centres
Technical Specification & Features


                      Phase



                  230v AC 1 Phase 50Hz


                      Temperature range



                  -10°C to 60°C


                      Dimensions



                  - 63A – H215 x W340 x D115
- 100A – H280 x W410 x D150


                      Weight



                  - 63A – 14.5kg
- 100A – 24kg


                      Amendment 3



                  Compliant


                      Isolation



                  Integrated isolation


                      Protection



                  Overcurrent protection


                      Choice of 4 voltage reduction settings



                  -10v, -15v, -20v, -25v


                      Voltage output



                  Set by the installer during installation


                      99.9% Efficient



                  Super low loss Toroidal technology


                      Permanent operation



                  - 63A
- 100A


                      Standards



                  - IEC 60076-1:2011
- IEC 60898
- Amendment 3 Compliant
- CE Compliant
- Manufactured in the UK under ISO 9001 Conditions
